Industrial air coolers - dual discharge

LU-VE Arctigo ID is a wide and flexible range of dual discharge industrial air coolers for cooling and freezing applications in medium to large cold rooms. This air cooler line is designed to keep fresh and frozen goods refrigerated from +20 to -35 °C, with either high or low humidity content. The Arctigo range offers a wide variety of cooler configurations and a long list of options, always allowing to select the best model to suit all applications in industrial cooling installations.

Check ongoing validity of certificate: www.eurovent-certification.com

*Brine refrigerant is not covered by Eurovent certification

Technical Highlights

• Single discharge air coolers
• Air direction: draw-through
• Operating temperature from +10 to -40 °C
• External static pressure up to 150 Pa
• 10 coil block modules
• 3, 4, 6, 8 or 10 tube rows in air direction
• 1 to 6 fans
• Fan Ø: 450, 500, 630 mm
• Drains inclined by 45° ø 1½" BSP ext.



Industrial air coolers - single discharge

Arctigo IS is a wide and flexible range of single discharge industrial air coolers for both cooling and freezing applications in medium to large cold rooms. This industrial air cooler line has been designed using the Helpman® heritage, to keep fresh and frozen goods refrigerated from +10 to -40 °C, with either high or low humidity content. The Arctigo range offers a wide variety of cooler configurations and a long list of options, always allowing to select the best model to suit all applications in industrial refrigeration installations. Arctigo air cooler models are available for dedicated applications such as agricultural storage, airsock application or shock cooling.

Check ongoing validity of certificate: www.eurovent-certification.com

*Brine refrigerant is not covered by Eurovent certification

• Single discharge air coolers

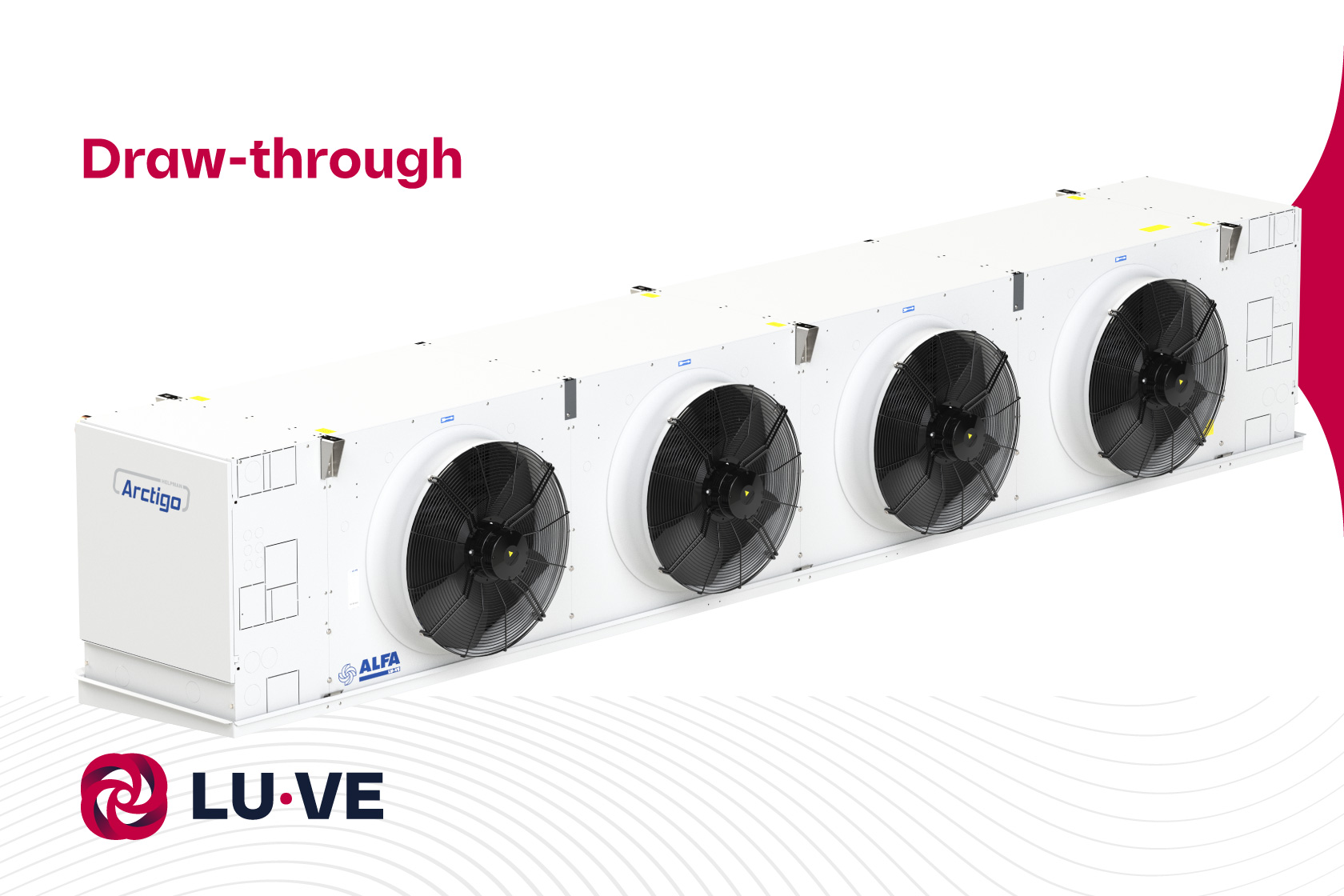

• Air direction: draw-through
• Operating temperature from +10 to -40 °C
• External static pressure up to 150 Pa
• 10 coil block modules
• 3, 4, 6, 8 or 10 tube rows in air direction
• 1 to 6 fans
• Fan Ø: 450, 500, 630, 710, 800, 910 mm
• Drains inclined by 45° ø 1½" BSP ext.



Industrial air coolers - single discharge

Alfa LU-VE Arctigo IS is a wide and flexible range of single discharge industrial air coolers for cooling and freezing applications in medium to large cold rooms. This air cooler line is designed to keep fresh and frozen goods refrigerated from +10 to -40 °C, with either high or low humidity content. The Arctigo range offers a wide variety of cooler configurations and a long list of options, always allowing to select the best model to suit all applications in industrial cooling installations.

Check ongoing validity of certificate: www.eurovent-certification.com

*Brine refrigerant is not covered by Eurovent certification

• Single discharge air coolers
• Air direction: draw-through
• Operating temperature from +10 to -40 °C
• External static pressure up to 150 Pa
• 10 coil block modules
• 3, 4, 6, 8 or 10 tube rows in air direction
• 1 to 6 fans
• Fan Ø: 450, 500, 630 mm
• Drains inclined by 45° ø 1½" BSP ext.



Banana ripening cooler – Airbag / side curtain system

Arctigo HRCD banana ripening coolers have been designed for application in airbag and side curtain system ripening rooms. The coolers have been optimised for 12.5 °C air-on and 11.5 °C air-off temperature at an evaporating temperature of 7 °C. Arctigo HRCD coolers provide for an even temperature distribution throughout the whole ripening room, guaranteeing that the products ripen as evenly as possible.

• Suitable for all HFC, CO2 and brine refrigerants.

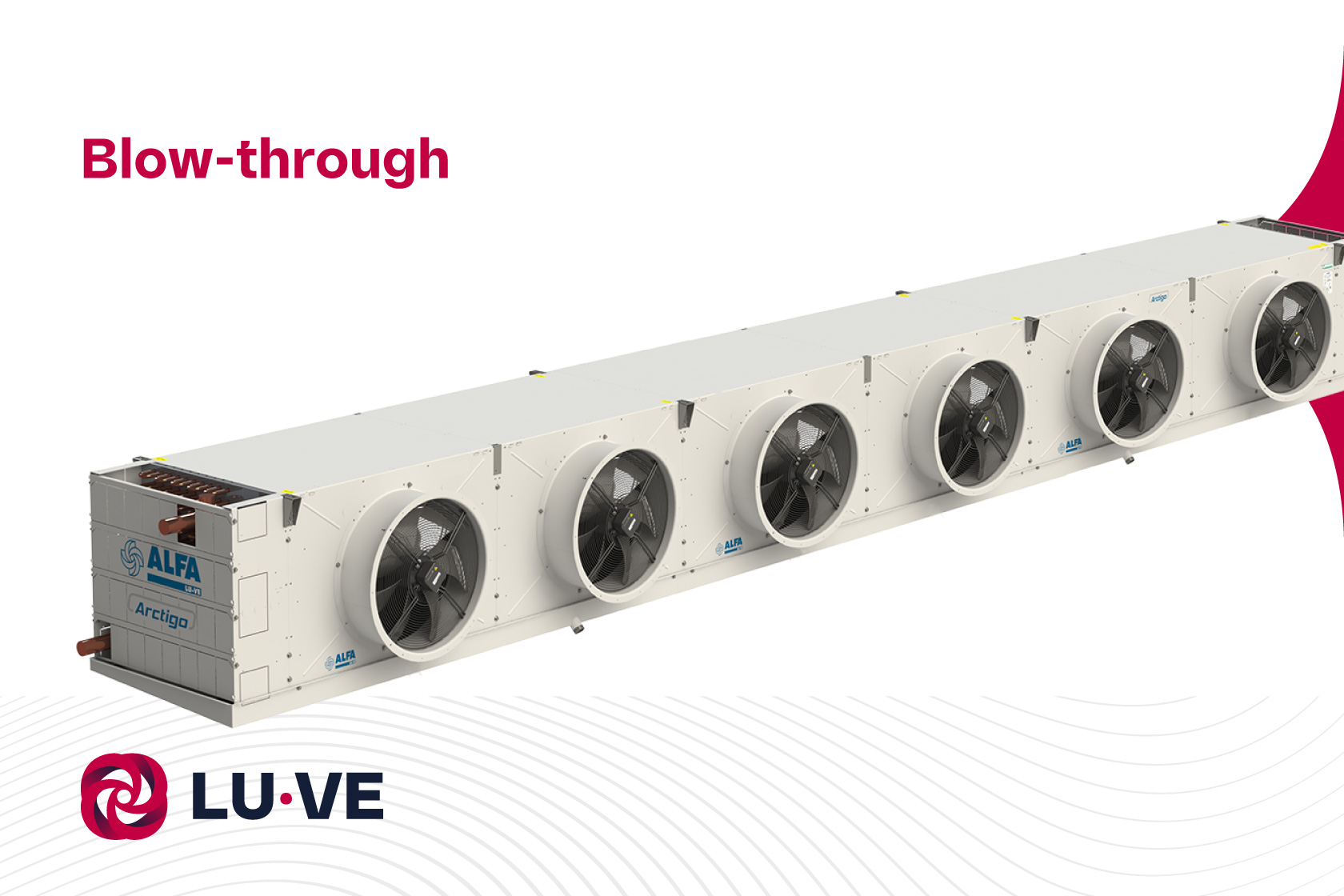

• Air direction: blow-through
• Optimised for 12.5 °C air-on and 11.5 °C air-off temperature at an evaporating temperature of 7 °C
• Full control over the ripening process resulting in perfect product quality.
• Lighting integrated into the cooler casing
• Hinged driptrays
• 3 to 5 fans
• Fan Ø: 508, 550 mm
• Horizontal drains.
